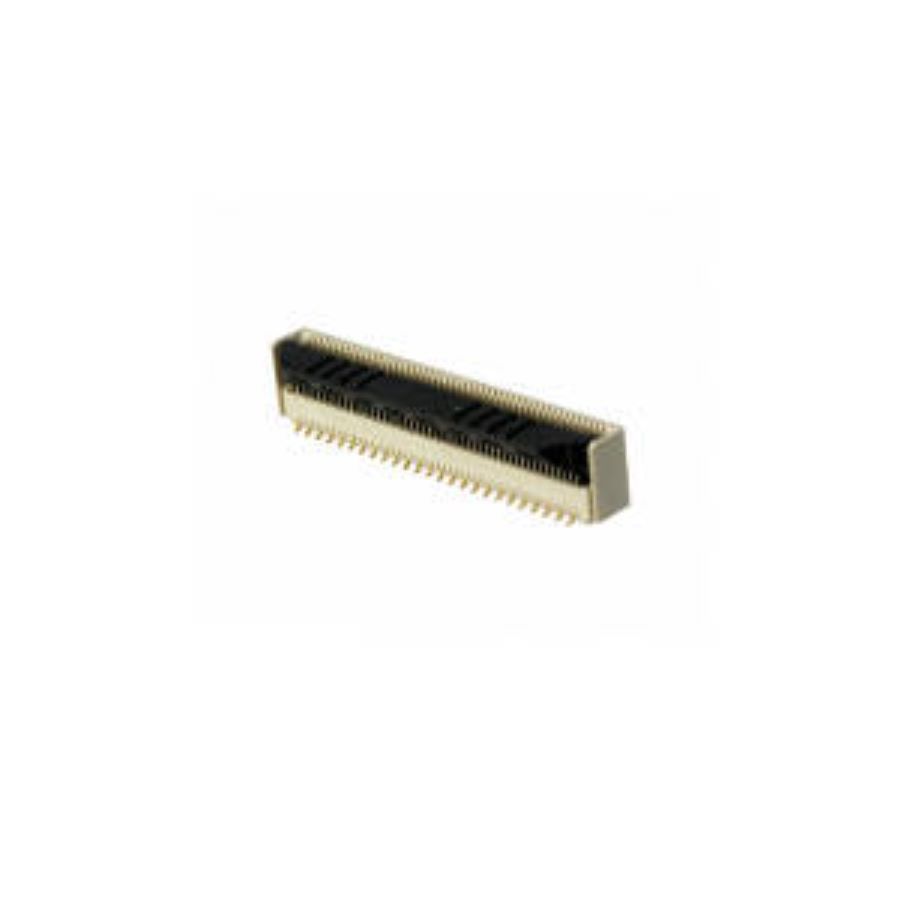

FH40-50S-0.5SV
Manufacturer:
Hirose Electric
Mfr.Part #:
FH40-50S-0.5SV
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:50 500 mA 50 V
| Parameter | Value |
|---|---|
| Length | 25.57 mm |
| Width | 5.65 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 5.8 mm |
| Packaging | Reel |
| Voltage Rating | 50 V |
| RoHS | Compliant |
| Contact Plating | Gold |
| Pitch | 500 µm |
| Current Rating | 500 mA |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Gender | Receptacle |
| Number of Contacts | 50 |
| Connector Type | Receptacle |
| Number of Positions | 50 |
Stock: 2041
Distributors
pcbx
pcbxUnit Price$2.52725
Ext.Price$2.52725
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.52725 | $2.52725 |
| 10 | $2.29524 | $22.95240 |
| 25 | $2.17357 | $54.33925 |
| 50 | $2.12304 | $106.15200 |
| 100 | $2.02197 | $202.19700 |
| 300 | $1.86417 | $559.25100 |
| 500 | $1.71868 | $859.34000 |
| 1000 | $1.35316 | $1353.16000 |
